Advantage Seal Type 81BB replacs:
John Crane® Type 58B,
AESSEAL® M04SU,
Eagle Burgmann® BT-C5.KB,
VULCAN® 1659BS,
ROTEN® 259BS

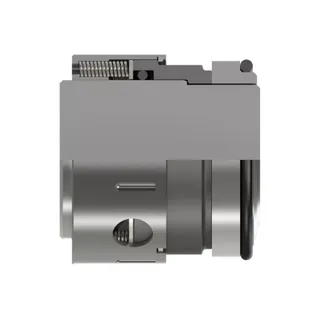

Type 81B is a DIN seal for general- and high-pressure duties in the processing, refinery and petrochemical industries. Alternative seat designs and material options are available to suit product and operating conditions of applications.
Design standard：ISO3069 DIN24960 API 610
A versatile design with multiple material options for the widest range of liquids and temperatures
A balanced seal with the advantage of being very short and fits within the DIN 24960 L1K operating length when used with a suitable seatat.
Pressure：p1 = 62 bar (899 PSI)
Temperature：t = -40 °C … 230 °C
Sliding velocity：vg = 25 m/s (82 ft/s)
Typical applications include oils, solvents, water and refrigerants, in addition to a multitude of chemical solutions.
Used in petroleum, chemical industry, chemical transportation, water treatment, chemical fiber and other fields.
